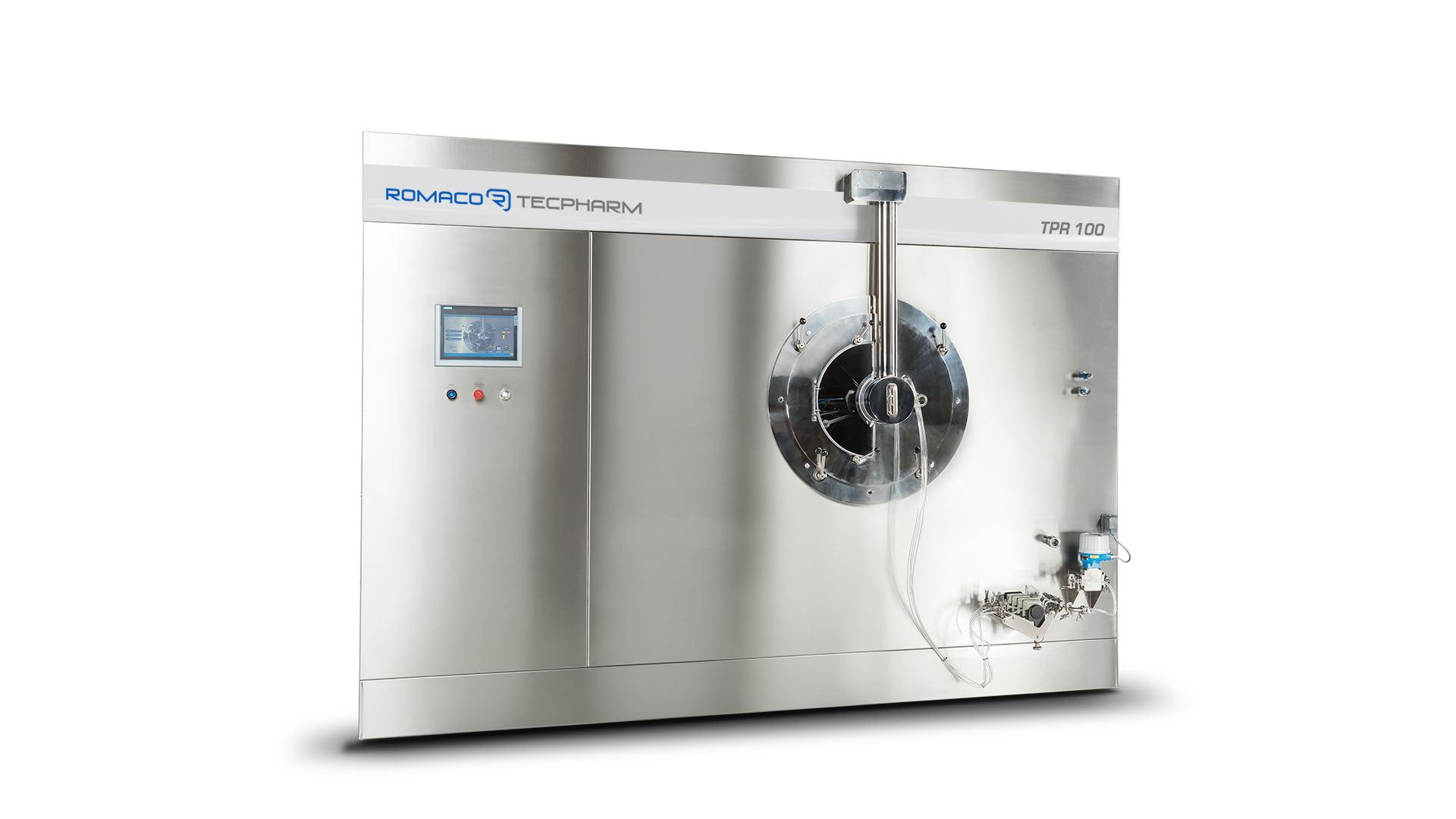

TPR tablet coater

Standard drum tablet coater. Coating from 25% to 100%. Perforated pan technology allows automatic adjustment of flow, avoiding dampness, saving coating and optimising processing time. Built-in wall supports sustainability.

Batch size from 3.5 L to 900 L

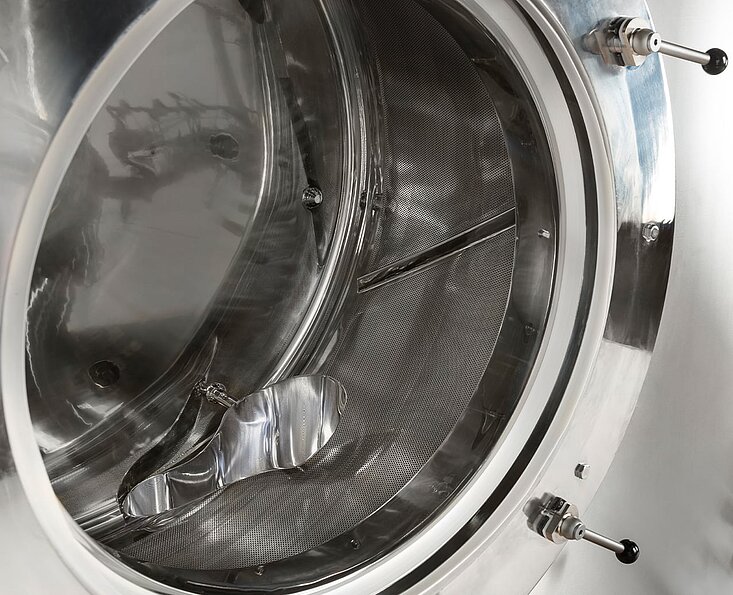

Perforated coating pan for tablets and pellets

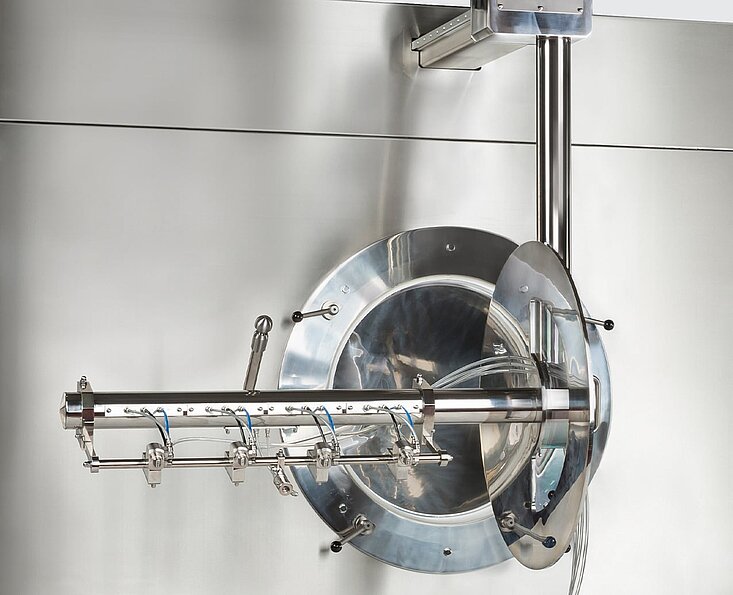

  • In-wall design concept
  • Built in AISI 316L, surfaces in contact with the product are mirror polished with roughness Ra <0.5

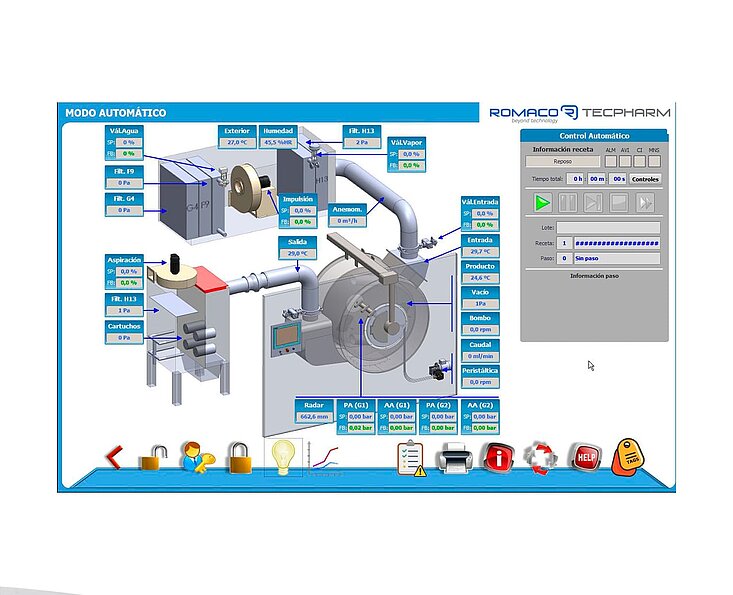

  • PLC + Intuitive HMI SIEMENS® for machine control in manual and automatic mode
  • Detachable deflectors

Functionalities

Machine Layout


Technical Data

Tablet Coaters Capacity​ (l) Dimensions (mm)
  min. max. A B C D E
TPR i5-10 3.5 15 1,620 1,885 1,575 685 890
TPR i50 7.5 75 2,030 2,045 2,517 1,213 1,304
TPR 100 38 150 3,210 2,254 2,838 1,300 1,538
TPR 150 56 225 3,210 2,254 3,140 1,465 1,675
TPR 200 75 300 3,210 2,321 3,413 1,615 1,798
TPR 300 113 450 3,510 2,542 3,975 1,845 2,130
TPR 400 150 600 3,510 2,785 4,628 2,105 2,523
TPR 500 188 750 3,840 3,050 5,390 2,400 2,990
TPR 600 225 900 3,840 3,340 6,275 2,730 3,545
More Information

* Approximate data / loading levels may change depending on tablets shape and density
