Tecpharm

TP R Optima Tablet Coater

Perforated coating pan for film coating of tablets and pellets suitable for aqueous and organic coatings.

Performance: 7.5 L to 900 L

Smarter Tablet Coating – true 10% to 100% with a single machine

  • Batch size range from 10% to 100% in a single drum

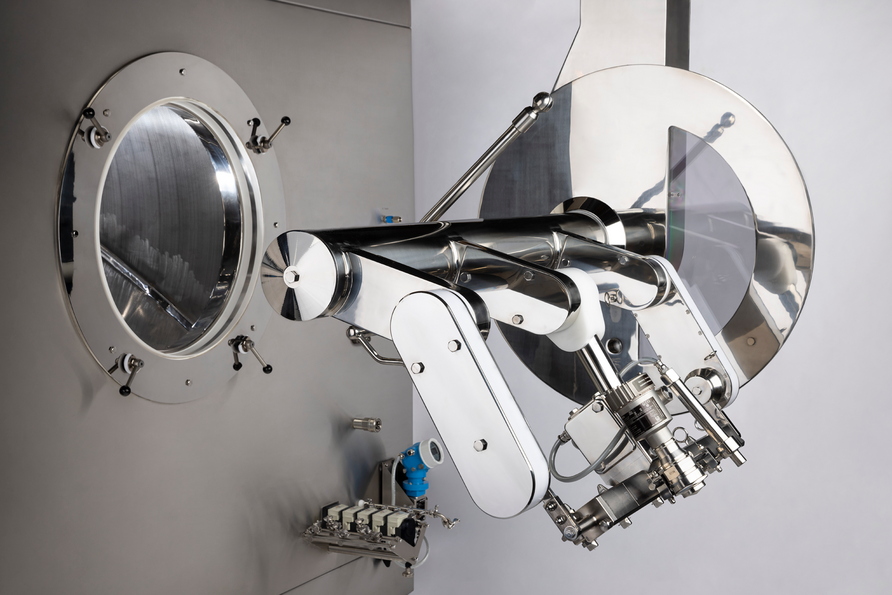

  • Fully automatic parameter setting

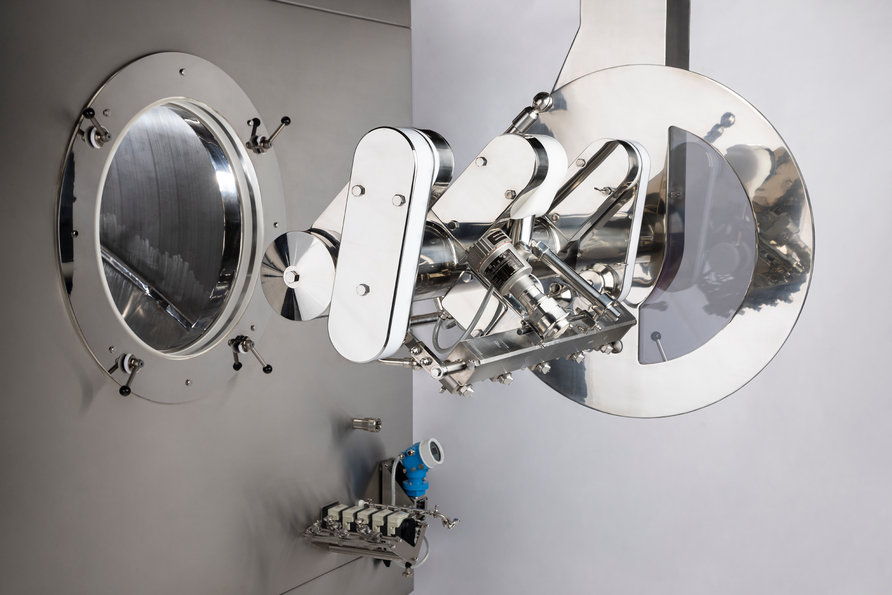

  • Automatic extension system for spray arm in relation to distance and angle

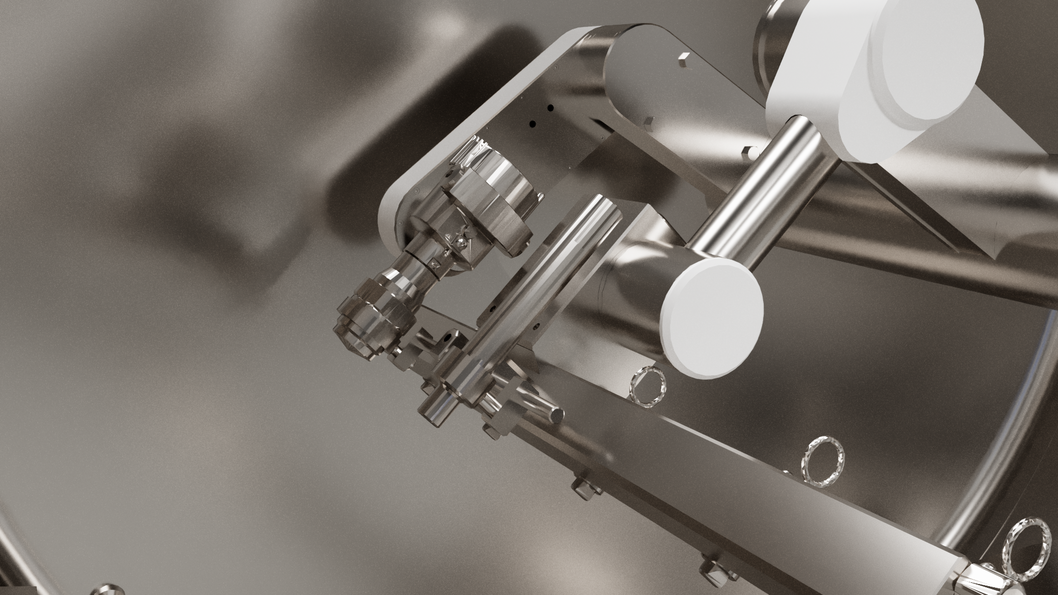

  • Automatic adjustment of the spray arm by sonar depending on the level of charge
  • Automatic regulation of air flow and path according to tablet or product load for a perfect coating performance

Key Features

The OPTIMA Tablet Coater is a film coating machine based on perforated pan technology.

Its high technology allows an automatic adjustment control of the flow, avoiding the damp, saving coating and optimizing the process time.

Functionalities

Machine Layout

Technical Data

Tablet Coaters Capacity​ (l) Dimensions (mm)
Model min. max. A B C D E
TP R50 Optima 7.5 75 3,210 2,254 2,799 1,276 1,510
TP R100 Optima 15 150 3,210 2,260 2,799 1,276 1,538
TP R200 Optima 30 300 3,210 2,321 3,413 1,615 1,798
TP R300 Optima 45 450 3,510 2,542 3,975 1,845 2,130
TP R400 Optima 60 600 3,710 2,785 4,154 1,937 2,217
TP R500 Optima 75 750 3,840 3,050 4,306 1,953 2,323
TP R600 Optima 90 900 3,840 3,340 6,275 2,730 3,545
More Information

* Approximate data / loading levels may change depending on tablets shape and density

Peripherals
