Kilian

S 250 SMART rotary tablet press

Economic, mid-sized, single-sided rotary tablet press for compression of any powder mixture.

26 to 44 press stations for max. 300,000 tablets/hour

SMART tablet compression

S = Simple handling

M = Modular packages

A = Automated operation

R = Robust & compact design

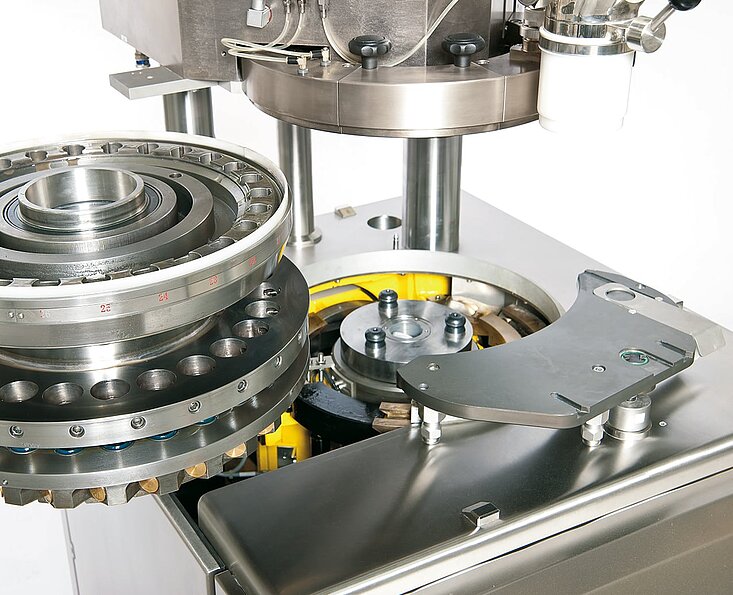

T = Turret exchange


Functionalities

Machine Layout


Technical Data

Machine configurations Tradition; Classic
Number of press stations 26 32 40 44
Tool type* (EU and TSM) D B B B
Die type D B BB BBS
Maximum tablet diameter (mm) 25 16 13 11
Maximum output** (tablets/hour) 156,000 220,000 270,000 300,000
Maximum die filling (mm) 20 16
Maximum pre-compression force*** (kN) 40
Maximum main-compression force *** (kN) 100
Standard voltage (V), frequency (Hz) 400, 50/60
Compressed air (bar) 6
Weight (kg) 1,925
More Information

* Special tools/formats available on request.

** The output depends on tablet size and compressed material.

*** Maximum punch load dependant on tablet design.

Peripherals

Stearate spraying system
Vacuum feeding system
Transport trolley
Deduster and metal check
Vacuum cleaner
PartGuard
