Kilian

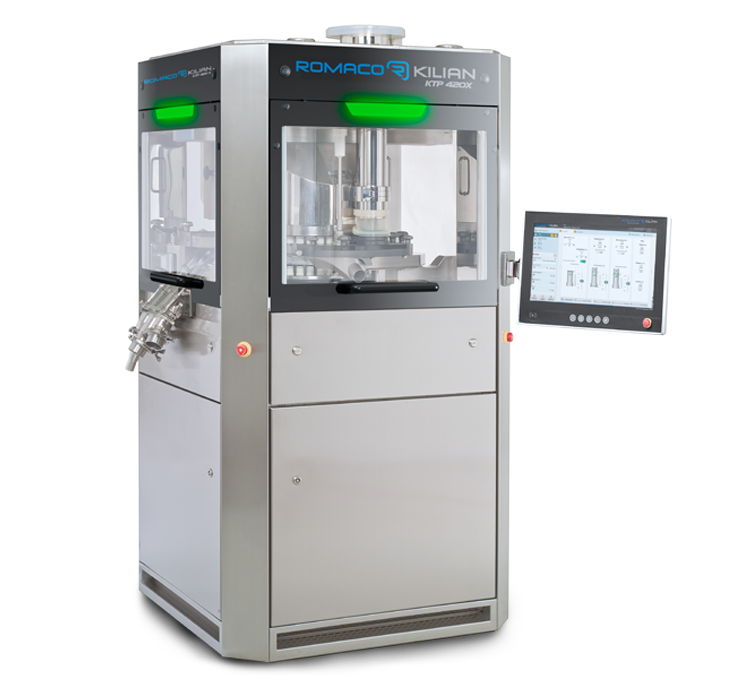

KTP 420X rotary tablet press

Mid-sized, single-sided high end rotary tablet press for pharmaceutical mono-layer applications – impresses with high availability as well as quick and easy format changes.

22 to 66 press stations for max. 475,200 tablets/hour

Livestream Request

Cool – fast – clean tablet compression

Designed to maintain the process area below 30 °C – ideal for temperature sensitive products
Excellent performance with challenging high volume products such as Ibuprofen
Minimal product loss
Minimal cleaning effort due to few product contact parts
No cross-contamination due to hermetical separation between compaction and service area

Ideal for:

processing heat sensetive products ►

processing products with capping / lamination tendency ►

processing effervescent products ►

processing vitamine products ►

Learn more

Key Features

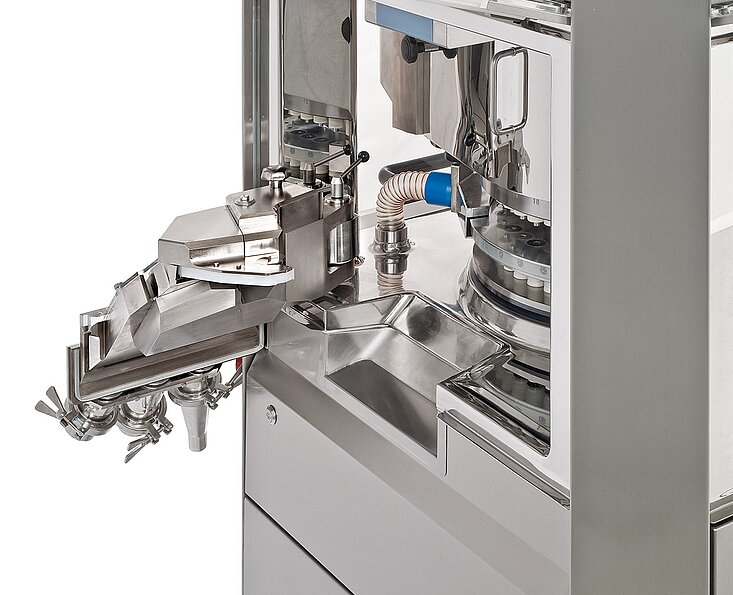

Tablet chute mounted on swivel arm

Curves and angles in processing area are radius >=15mm

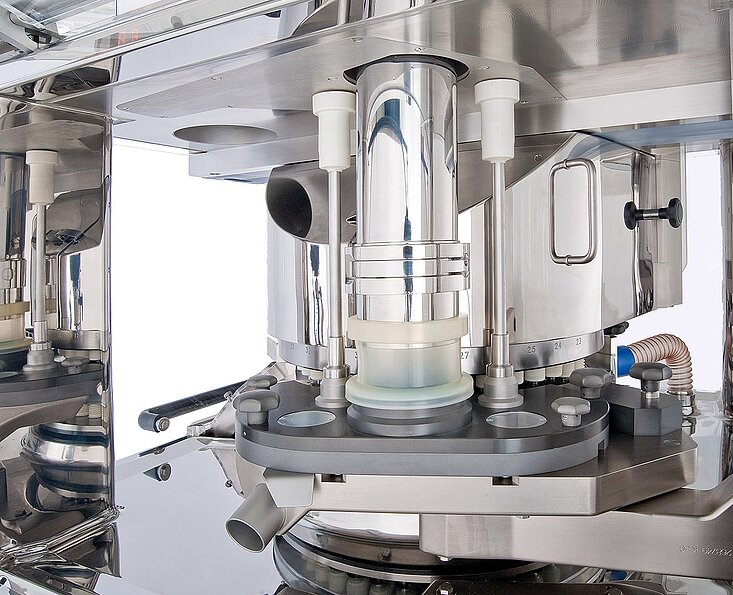

Highly efficient filling system

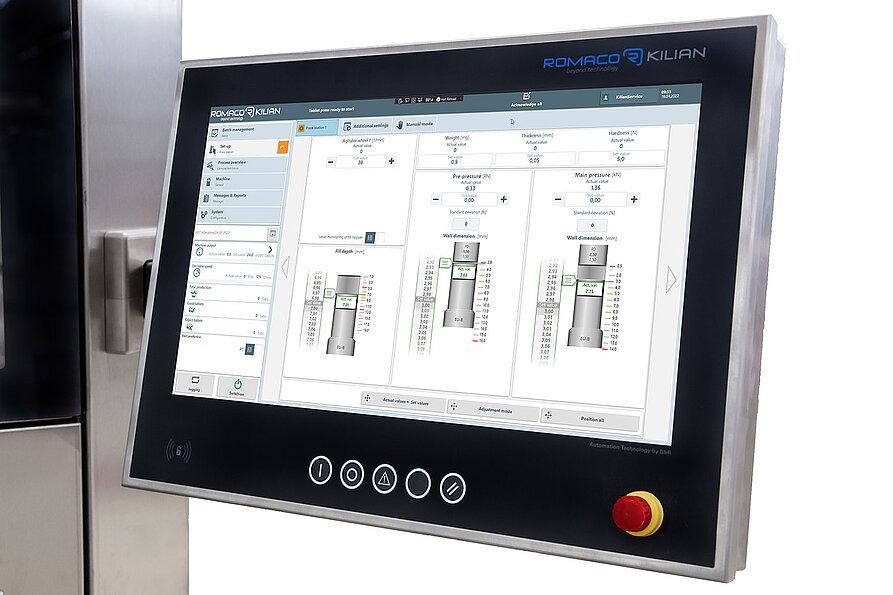

Ergonomic HMI control system

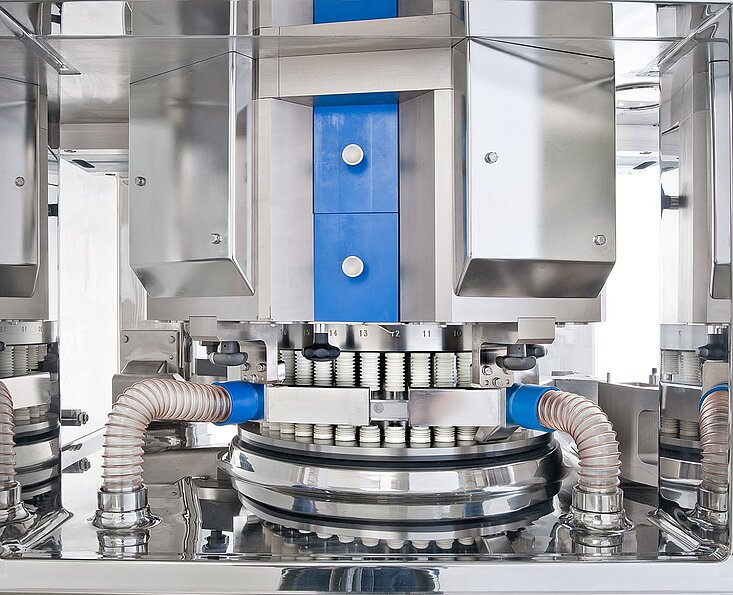

Segment technology and optimized RS12 tooling available

Functionalities

Machine Layout

Technical Data

Machine configuration	Mono-layer
Number of press stations	66	50	45	45	37	33	30	22
*Tool type (EU and TSM)**	RS12	B	B	B	B	D	D	35/45
Die type	Segments	BBS	BB	Segments	B	Segments	D	52/30
Max. die filling (mm)	20	18	18	20	18	20	20	20
Max. tablet diameter (mm)	12	11	13	18	16	24	24	33
Max. output (tablets/hour)**	475,200	360,000	324,000	324,000	266,000	217,800	198,000	79,200
Max. pre-compression force* (kN)**	40	80				100
Max. main-compression force* (kN)**	40	80				100
Standard voltage (V), Frequency (Hz)	400, 50/60
Compressed air (bar)	6
Weight (kg)	3,500
