STF 120 - Romaco

STF 120

Capabilities
Key Features
Functionalities
Technical Data
Alternative Products
Peripherals
Up- & Downstream

USPs

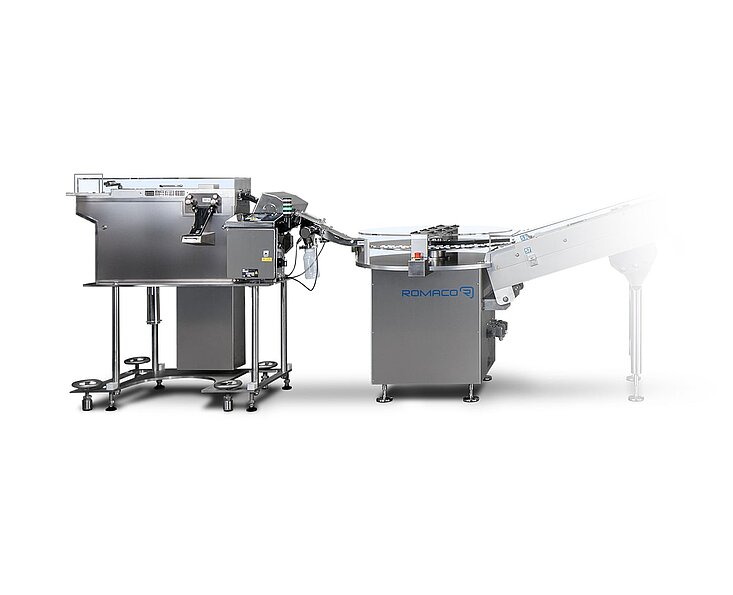

Line solution from powder to pallet by integrated equipments
Reduced change-over time to other tablets due to very few format parts

Advanced level of automation provides total process control
Safe packaging of soft effervescent tablets

Processing effervescent and vitamin products? ->

Key Features

Image Gallery Slider

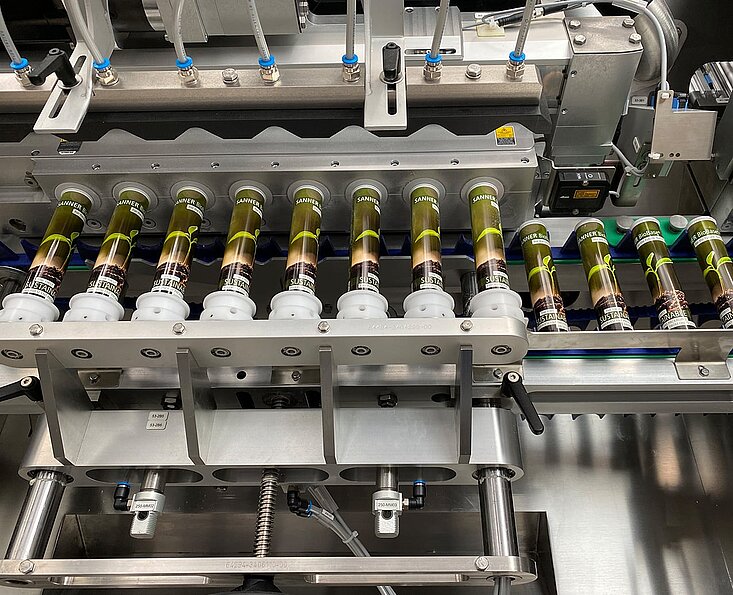

Gentle transfer of the tablets

Image Gallery Slider

Unique rotation principle enables gentle filling of fragile effervescent products

Image Gallery Slider

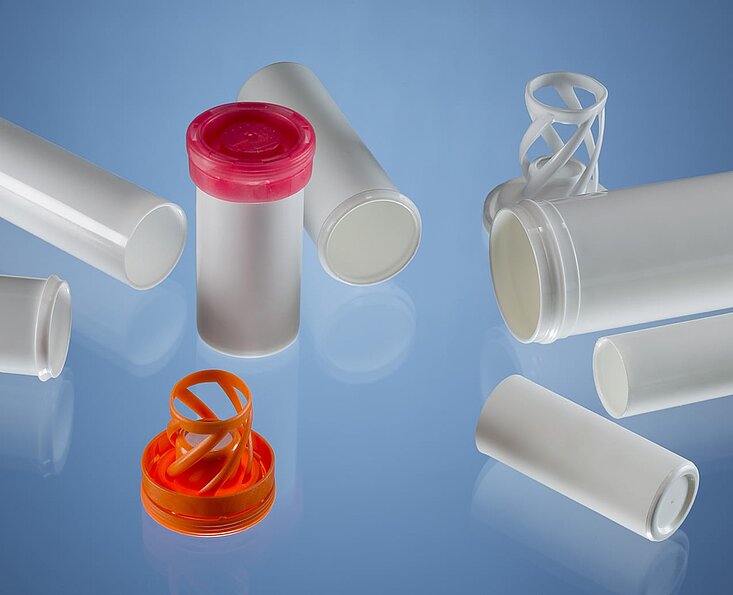

Flexibility to produce with wide range of tube sizes and products

Functionalities

Feed and Fill

Close

Transfer

Transfer

Machine Layout

Additional Views

View in Showroom

Technical Data

	STF 120
Maximum output (tubes/minute)	120
Maximum feed rate (tablets/hour)	100,000
Tablet lanes	8
Tablet diameter (mm), min. – max.	16–33
Tablet thickness (mm), min. – max.	4–10
Tablet hardness (N)	≥ 40
Tablets per tube, min. – max.	5–30
Tube length (mm), min. – max.	70–180
Tube diameter (mm), min. – max.	18–35
Remote Assist connection	Ethernet
PDA interface	OPC UA

More Information

Alternative Products

HM 1E

Siebler

HM 1E

Applications

Maximum output (tablets/min.)

3,000

SEE MORE

Peripherals

Line integration with tablet press

Line integration with cartoner

Upstream

Tableting

Tableting

with Kilian

Downstream

Cartoning

Cartoning

with Promatic
