Noack

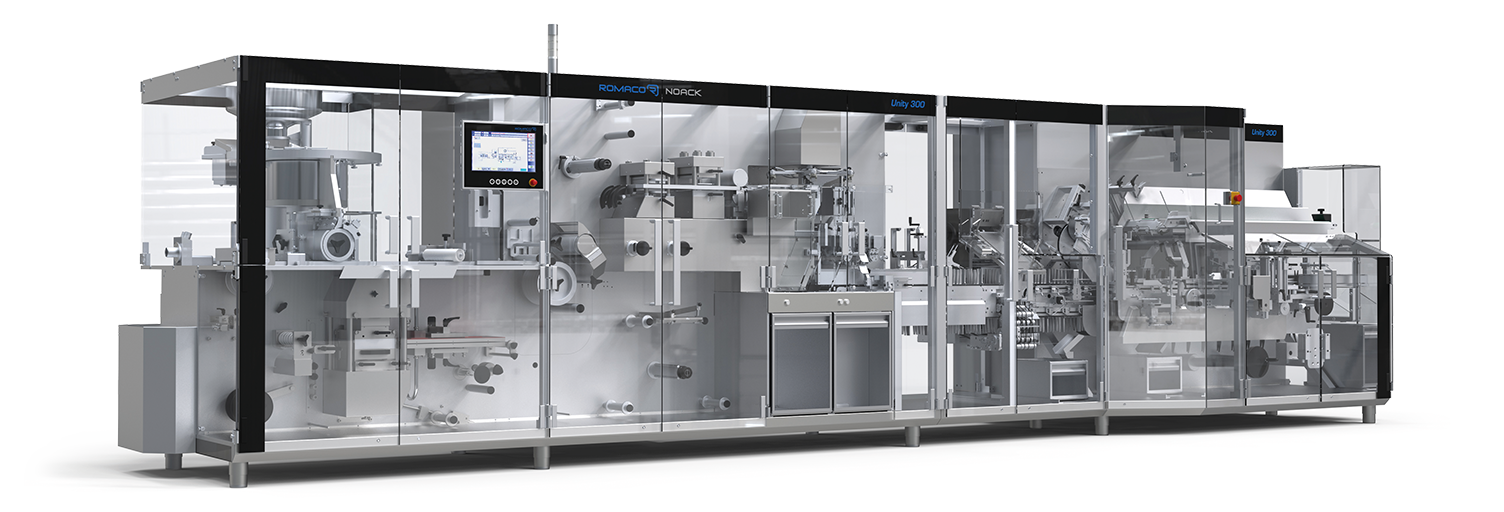

Unity 300 blister packaging line

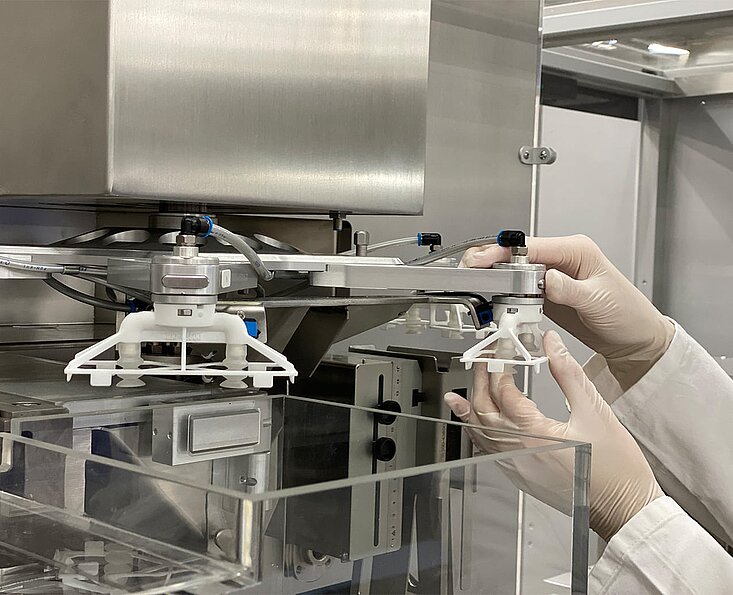

Rotary sealing blister machine with continuous motion cartoner in single track crosswise operation. Quick change over – 3 years warranty.

300 blisters/min – up to 100 × 150 mm blister size. Ready to perform!

USPs

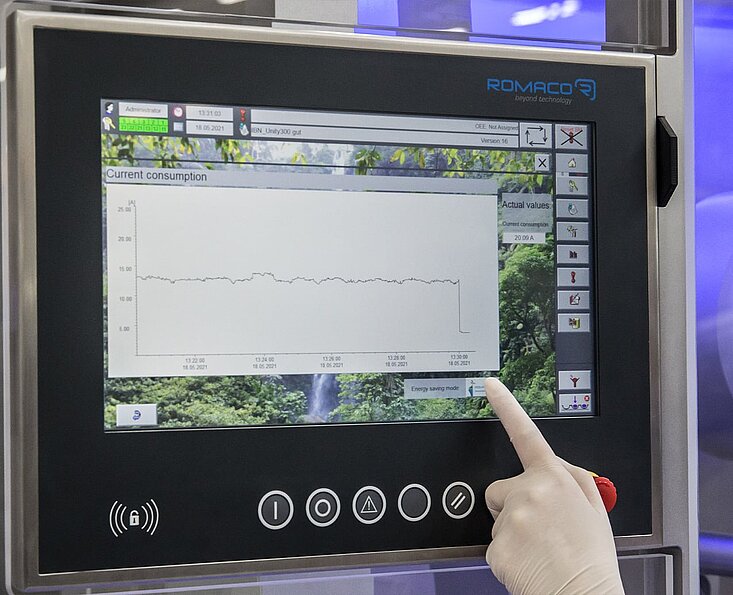

  • OEE (operational efficiency) optimised
  • Extremely low operational cost
  • CO2 neutral manufactured and low CO2 emission per blister
  • Ready for connection to various track & trace systems

Functionalities

Machine Layout

Additional Views
View in Showroom

Technical Data

  Unity 300​
Maximum output (blister/minute) 300
Maximum forming area (mm) 150 × 190
Maximum forming depth (mm) 12
Maximum output (cartons/minute), min. – max. 10–300
Carton dimensions (mm), A × B × C, min. – max. 35 × 15 × 65 to 105 × 100 × 160
Blister dimensions (mm), min. – max.​ 30 × 3 × 60 to 100 × 12 × 150

Peripherals

Lifting column
Various feeding systems
Foil Lifting Device
Cooling Unit
Dust Remover
Format Parts
Testing Center
Checkweigher
