Promatic

PAK Series for case packing

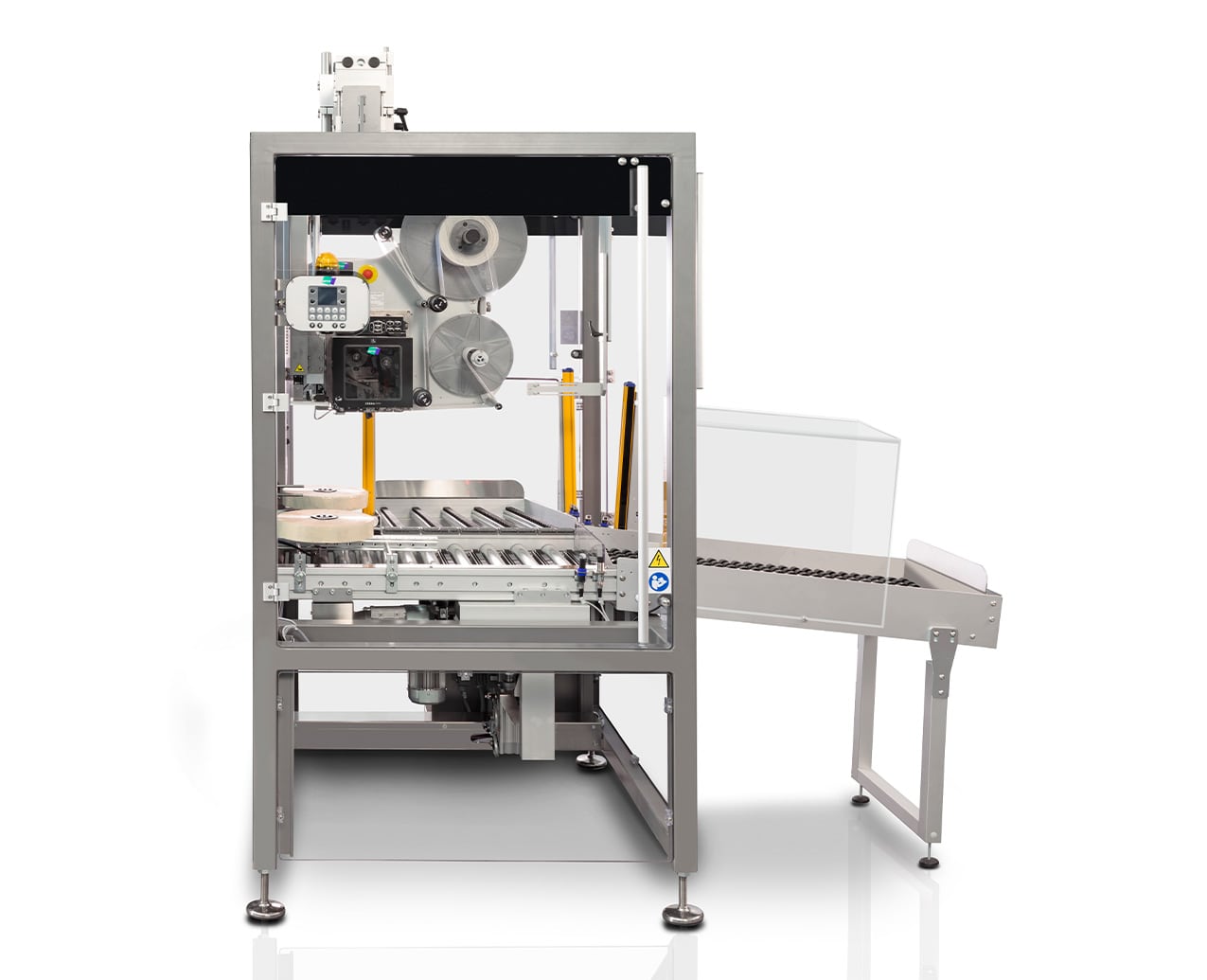

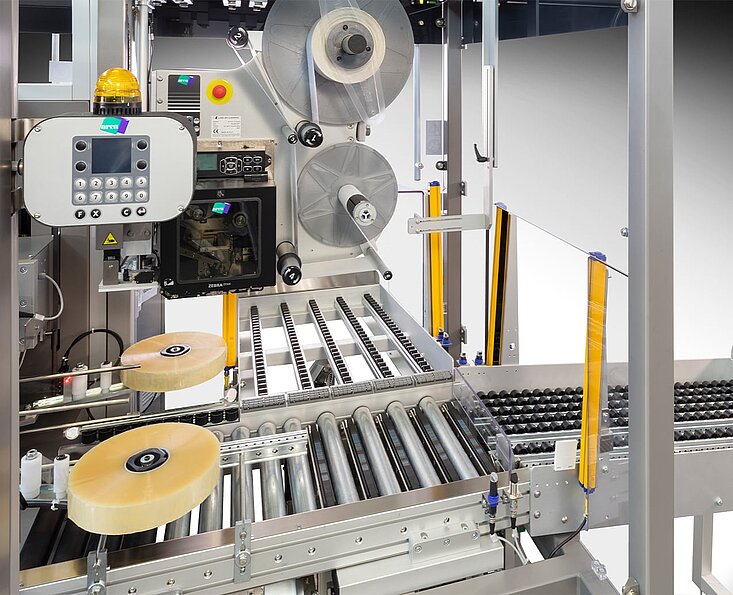

Case packing and aggregation. Semi-automatic or fully automatic case packing with ergonomic features and options for labelling and aggregation to comply with pharmaceutical industry requirements.

Up to 8 cases/minute

Your goods ready for shipment

  • Full visibility of product flow and immediate safe access to all functions and operations

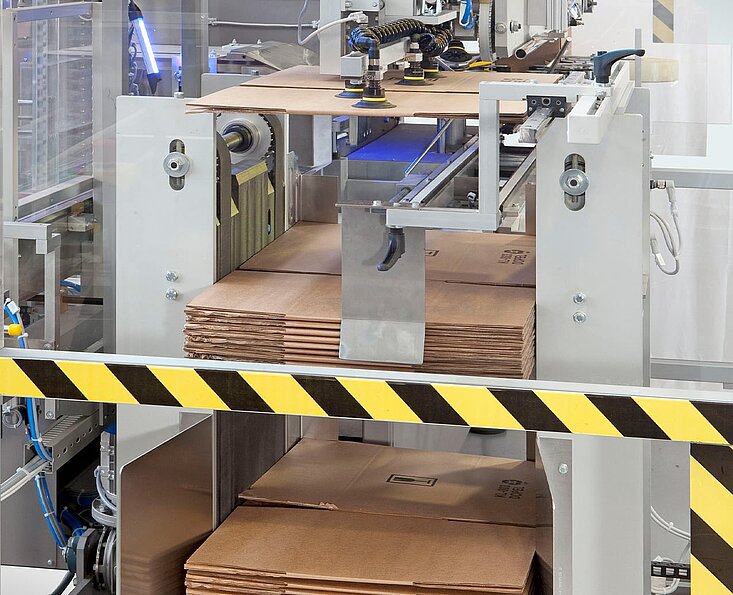

  • Minimal need of operator intervention for loading components during the run due to high-capacity case magazine that enables automatic lifting of the cases to working height
  • Forced uprighting of the cases via a double arm fitted with suction cups and Venturi vacuum unit

Functionalities

Machine Layout

Additional views
View in showroom

Technical Data

  PAK 320 PAK 100 PAK 130
Mechanical speed (cases/min.) 8 5 5
Power consumption (kW) 4 1.6 3
Air consumption (Nl/min.) 250 100 75
Weight approx. (kg) 1,800 700 700
Length (mm) 4,350 2,370 2,700
Depth (mm) 1,850 1,685 2,225
Height (mm) 1,715 1,900 1,900
Carton size range (mm) min. max. min. max. min. max.
A 20 180 20 210 20 210
B 15 100 15 85 15 85
C 60 210 60 210 60 250
Case size range (mm) min. max. min. max. min. max.
a3 200 500 230 550 230 550
b3 150 350 160 500 140 500
c3 120 350 150 350 150 350
