Kilian

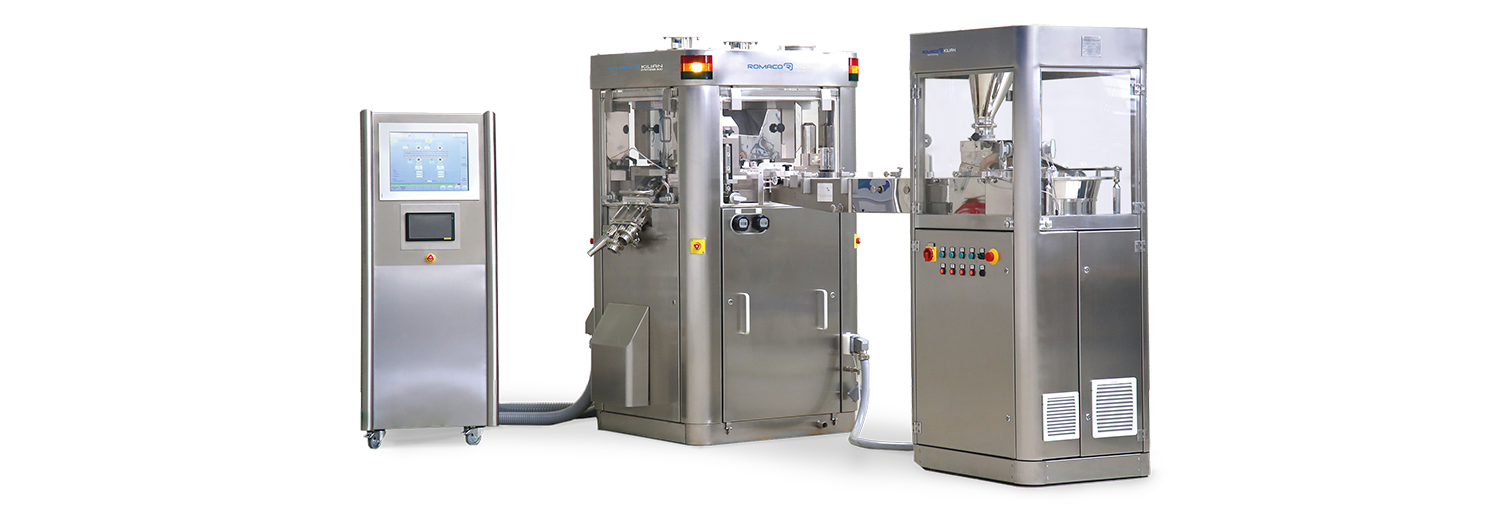

SYNTHESIS 500 TT/TTH rotary tablet press

The fastest and most accurate rotary tablet press for tab-in-tab production and dry-coating.

30 to 50 press stations for max. 140,000 tablets/hour

Precise – fast – clean tablet compression

  • Easy set-up and core position control via camera system
  • Fast tab-in-tab production
  • Low cleaning effort due to few product contact parts
  • Minimal product loss
  • No cross-contamination due to effective separation between processing and maintenance area

Key Features

Image Gallery Slider

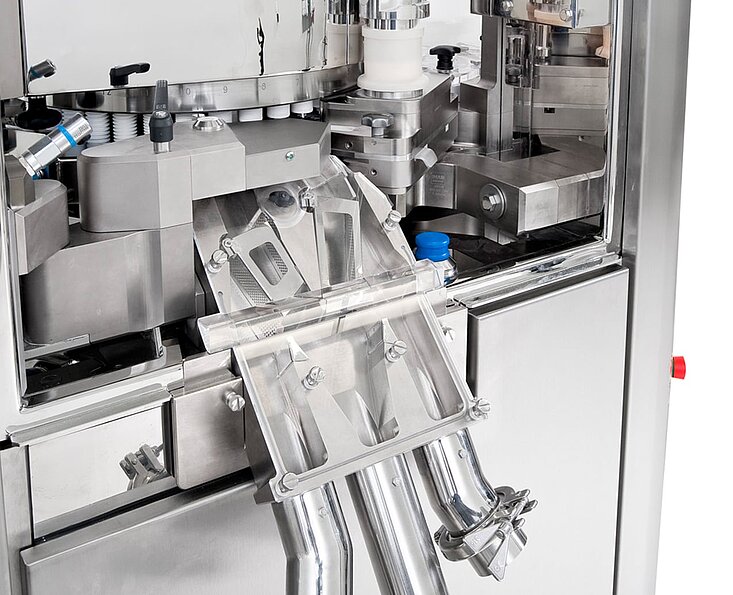

Dust-tight tablet chute mounted on swivel arm
Image Gallery Slider

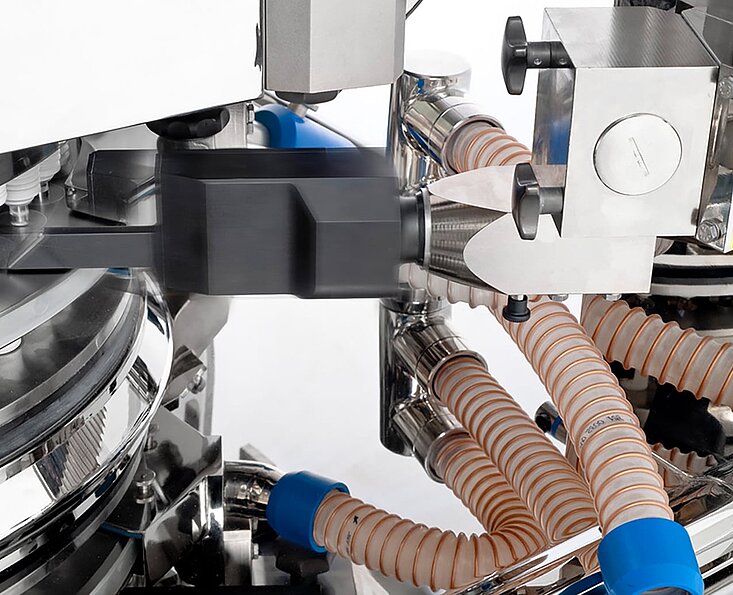

Camera system for easy set-up of core positioning and core position control
Image Gallery Slider

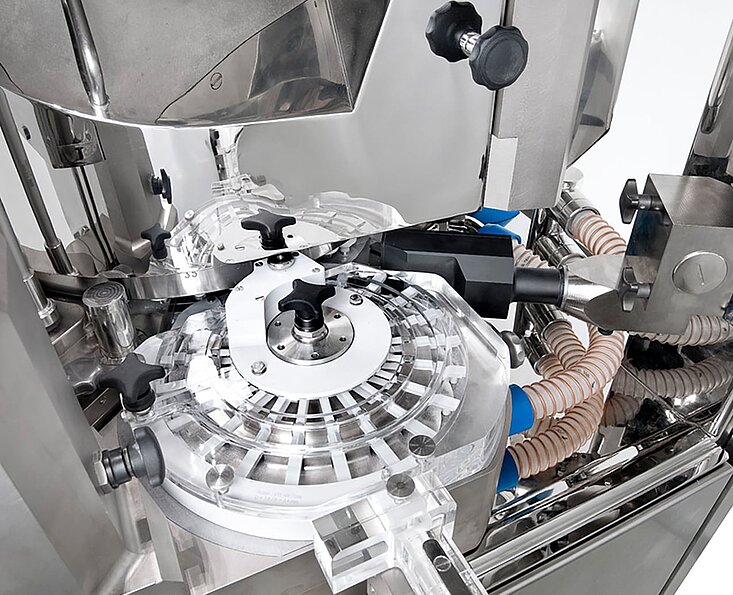

Core distributor
Image Gallery Slider

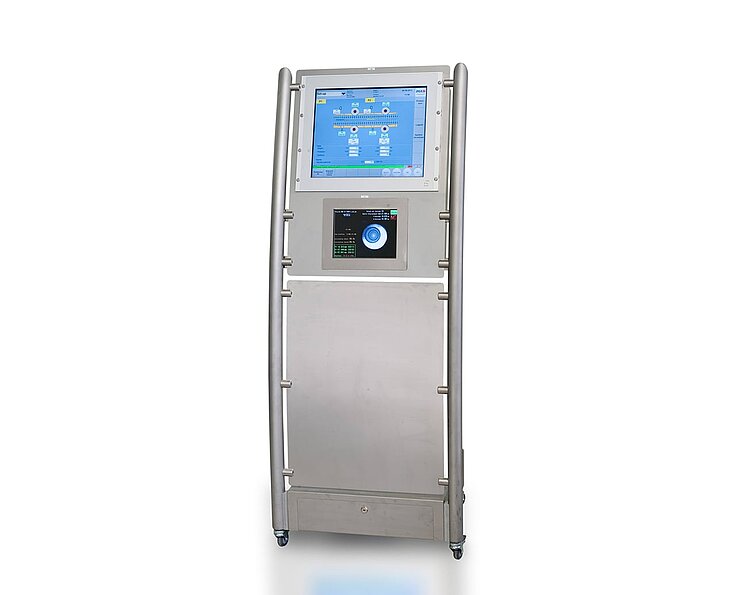

User friendly control system

Functionalities

Tab-in-tab application

Tab-in-tab application

See More
Single-sided for core tablets

Single-sided for core tablets

See More

Machine Layout

Additional Views
View in Showroom

Technical Data

Machine configurations Mono-layer; Bi-layer; Tab-in-Tab; Bulls-Eye
Number of press stations 50 45 35 30
Tool type* (EU and TSM) B D
Die type BBS BB B D
Max. die filling (mm) 18 20
Max. tablet diameter (mm) 11 13 16 24
Max. output** Tab-in-Tab TT version (tablets/hour) 75,000 67,500 52,500 45,000
Max. output** Tab-in-Tab TTH version (tablets/hour) 140,000 126,000 98,000 84,000
Max. output** Mono-layer (tablets/hour) 180,000 162,000 133,000 99,000
Max. output** Bi-layer (tablets/hour) 360,000 324,000 266,000 198,000
Max. compression*** force first layer (kN) 10
Max. compression*** force second layer (kN) 80 100
Standard voltage (V), frequency (Hz) 400, 50/60
Compressed air (bar) 6
Weight (kg) 3,580
More Information

* Special tools/formats available on request.

** The output depends on tablet size and compressed material.

*** Maximum punch load depends on tablet design.

Peripherals

Vacuum feeding system
Transport trolley
Deduster and metal check
Tablet check unit
Vacuum cleaner
PartGuard
see all

Upstream

Granulation

Granulation

with Innojet

See More

Downstream

Tablet coating
Blister packaging

Tablet coating

with Tecpharm

See More

Blister packaging

with Noack

See More
