Promatic

PC 4000 Series cartoners

Horizontal continuous motion cartoners. The PC 4000 cartoners consistently deliver versatility via a wide range of tailor-made feeding options for different products, together with ergonomics and efficiency.

Max. 400 cartons/minute.


High speed and quality packaging

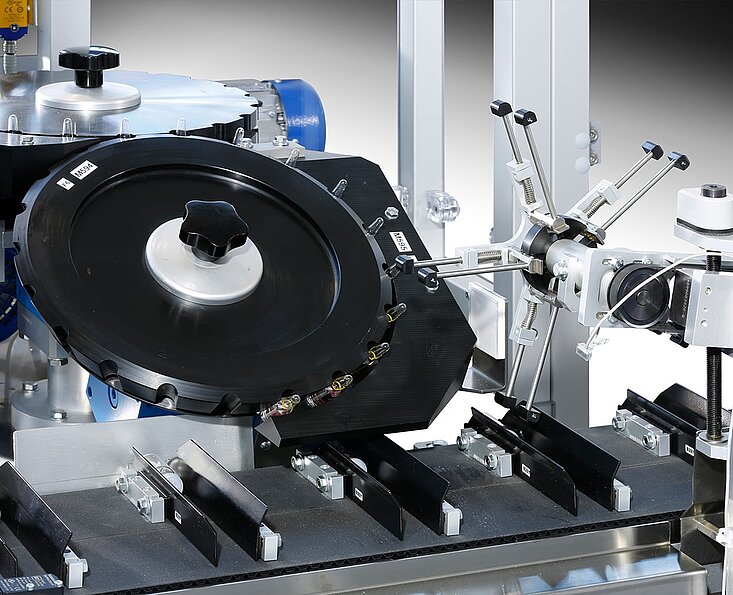

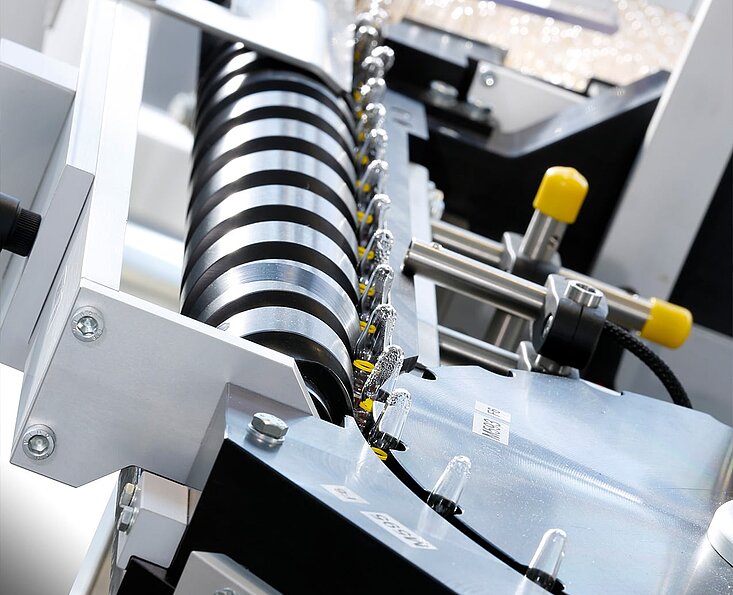

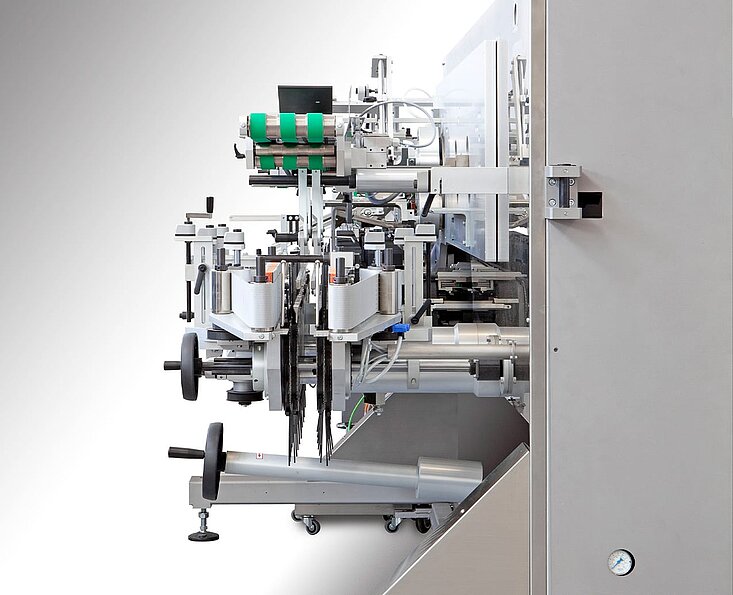

  • Seamless integration of all kinds of feeding system for pharmaceutical, nutraceutical, chemical products
  • Ergonomic working height for maximum operating convenience
  • Zero waste logic

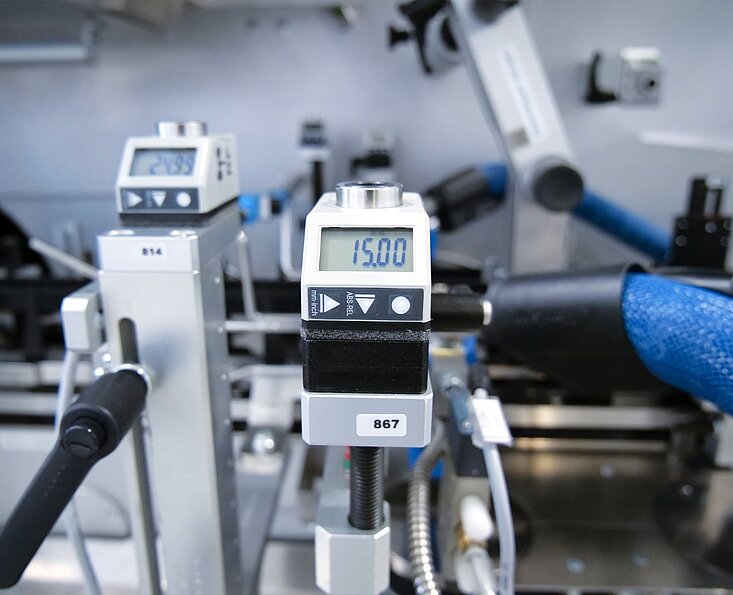

  • Smart Change-over kit (guided format change-over via HMI and wireless digital position indicators)

Functionalities

Machine Layout

Additional views
View in showroom

Technical Data

  PC 4150 PC 4201 PC 4250 PC 4300 PC 4350 PC 4400
Speed up to (cartons/min.)* 150 200 250 300 350 400
Installed power (kW)* 7.5 9 7.5 8.5 8.45 8.5

Air consumption at max. speed (Nl/min.)

150 200 200 300 350 400
Weight, approx. (kg) 2,600 2,420 2,500 2,500 2,300 2,500
Length (mm)* 5,950 5,450 5,500 5,500 5,200 5,500
Depth (mm)* 1,750 1,750 1,7450 1,7450 1,750 1,745
Height (mm)* 2,000 1,970 2,000 2,000 1,970 2,000

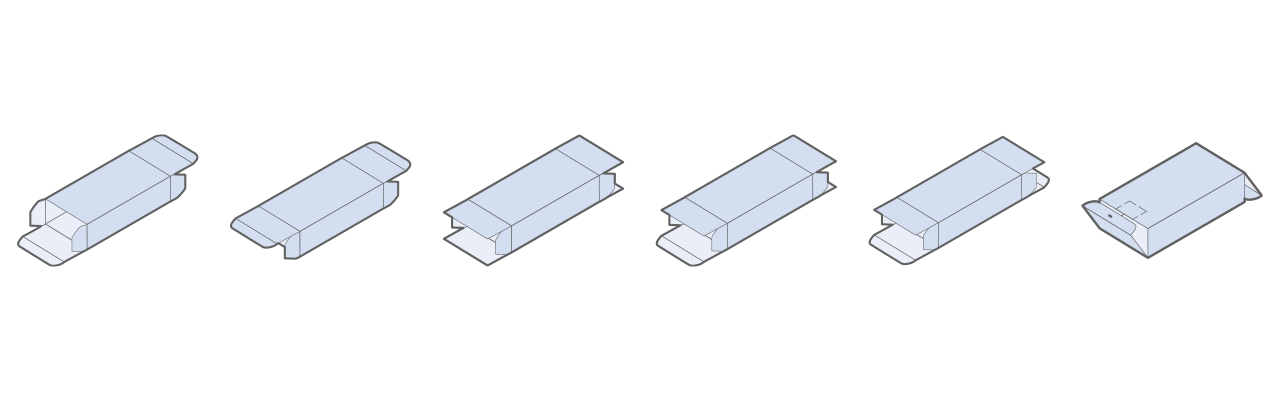

Size range (mm) min. max. min. max. min. max. min. max. min. max. min. max.
A 25 165 20 105 20 120 25 95 25 95 25 75
B 15 100 15 100 15 80 15 70 15 100 15 70
C 60 210 60 160 60 210 60 200 60 200 60 160
A+B   265   205   200   165   195   145
*depending on product and machine configuration
