Oftalmica liquid filling machine

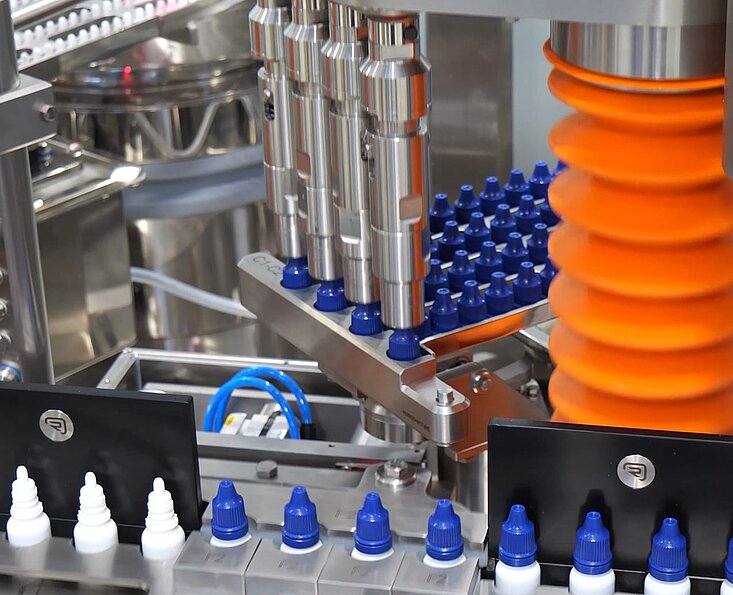

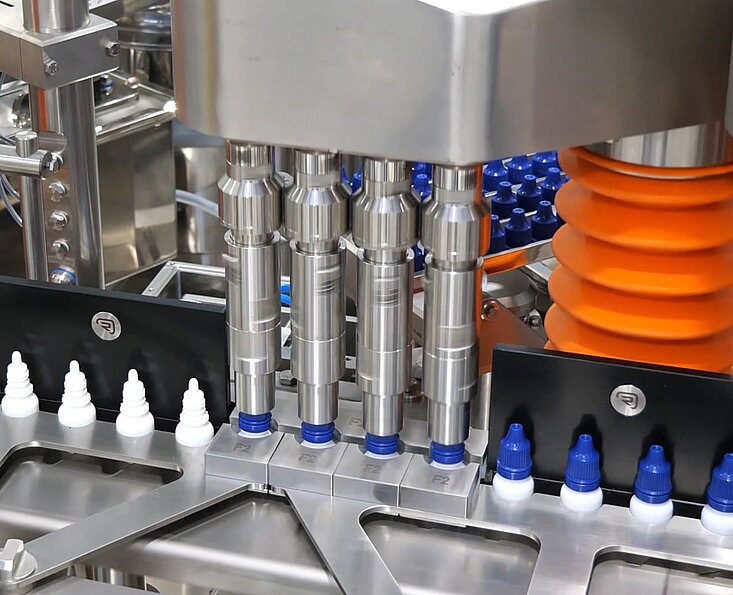

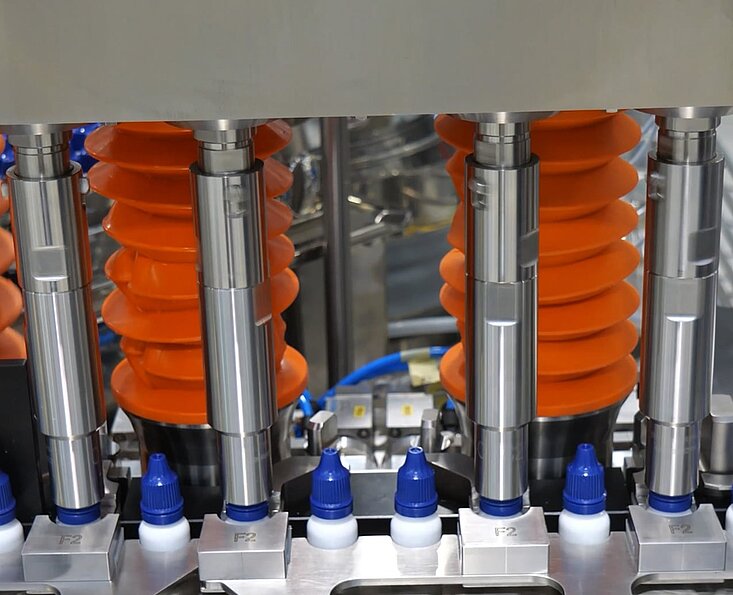

Sterile liquid filling and capping. The Oftalmica machine’s main application is filling and capping of ophthalmic products; additionally, it can easily handle nasal sprays and injectables (small formats).

Max. 12,000 bottle/hour with a filling range of 1 ml to 30 ml

The art and science of ophthalmic filling

  • Minimised change-over parts and downtime due to wide adaptability range of transport system and machine stations

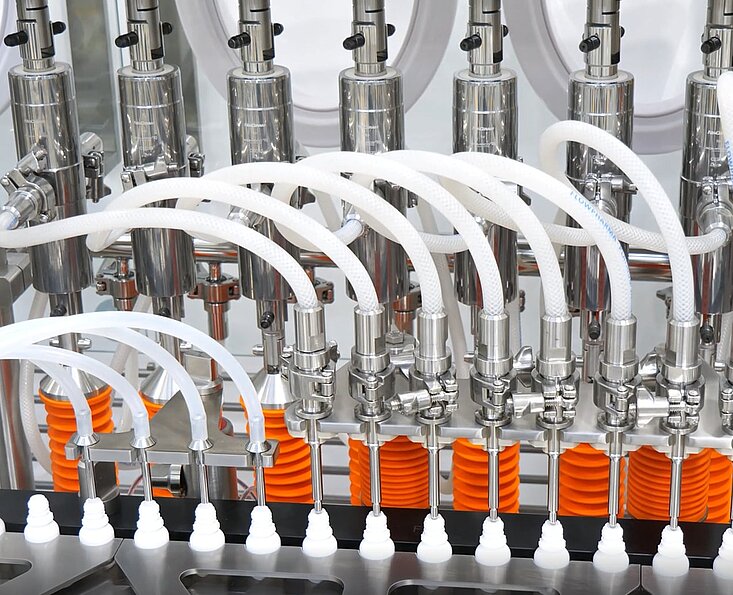

  • Dosing system designed according to ophthalmic production needs – capable to maintain high speed/max. output even with viscous and foamy liquids which need to be fed into bottles with small mouths
  • Machine designed for aseptic processing according to the latest Annex 1 of cGMP for the manufacturing of sterile medicinal products:
    • also suitable for injectable applications
    • turnkey solution with washer and tunnel available

Functionalities

Machine Layout


Technical Data

  OFTALMICA
Output – single dose (vials/hour)* 12,000 up to 30 ml filling volume
Vial dimensions, diameter range (mm) 20–32
Vial dimensions, height range (mm) 35–80
Filling range (ml)* 1–30
Installed power (kW) 35
Compressed air consumption (NL/min) 550
PLC standard Schneider
HMI B&R
Additional Information

* May vary according to products features
