Kilian

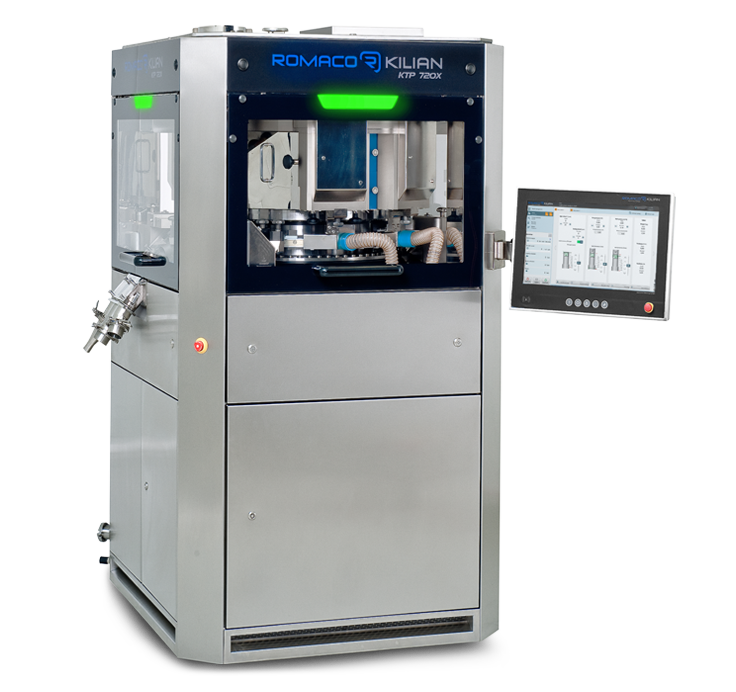

KTP 720X rotary tablet press

Double-sided, high end rotary tablet press for fully automatic high-volume production of mono- and bi-layer tablets with achievement of maximum output and minimum wear.

51 to 115 press stations for max. 1,380,000 tablets/hour


Cool – fast – clean tablet compression

  • Designed to maintain the process area below 30 °C – ideal for temperature sensitive products
  • Excellent performance with challenging high volume products such as Amlodipine
  • Minimal product loss
  • Minimal cleaning effort due to few product contact parts
  • No cross-contamination due to hermetical separation between compaction and service area

Functionalities

Machine Layout

Additional Views
View in Showroom

Technical Data

Machine configurations Mono-layer; Bi-layer; Core
Number of press stations 51 63 77 85 115
Tool type* (EU and TSM) D B B B RS12

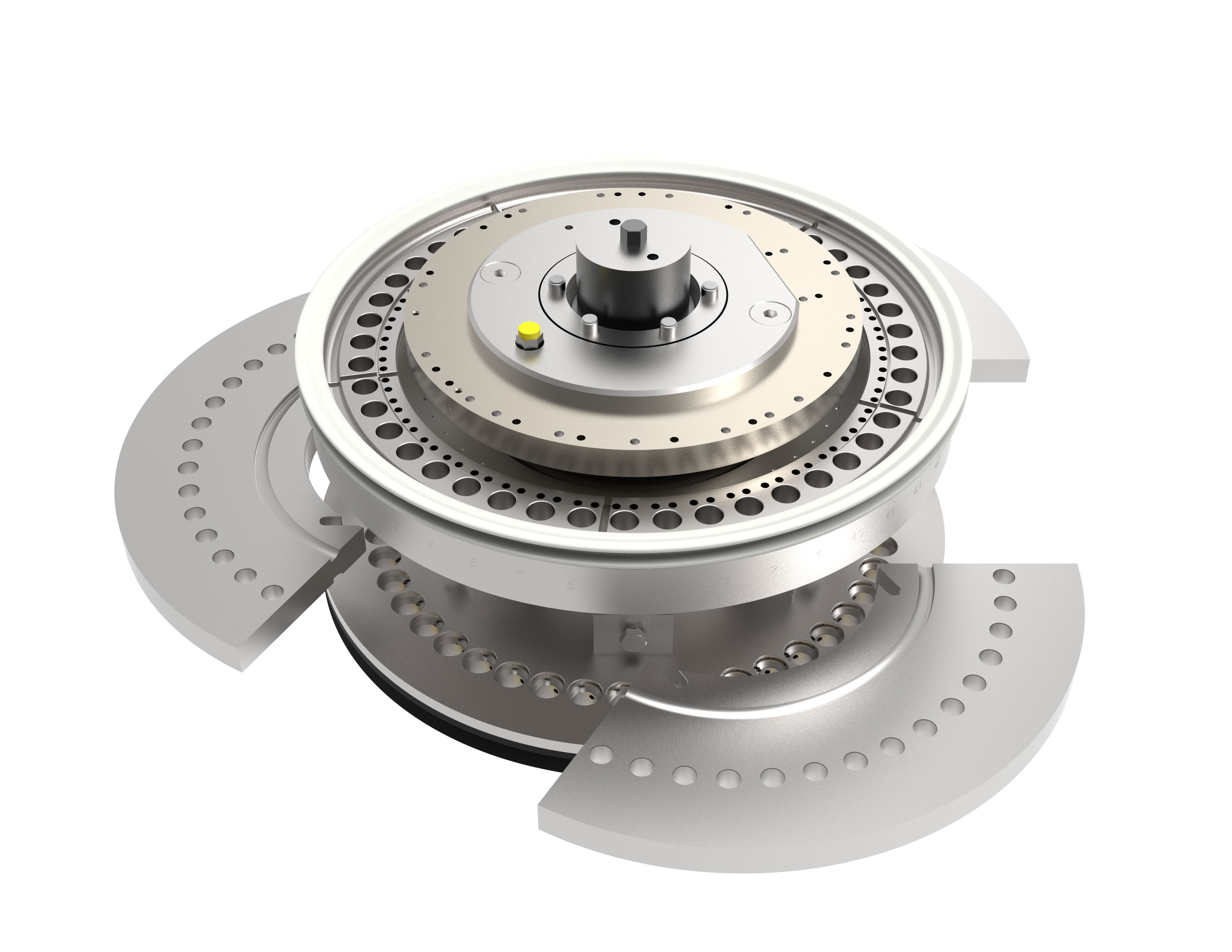

Die type D B BB BBS 5 segments
Maximum tablet diameter (mm) 24 16 13 11 12
Maximum output** (tablets/hour) 550,000 756,000 924,000 1,020,000 1,380,000
Maximum die filling (mm) 20 18
Maximum pre-compression force*** (kN) 100
Maximum main-compression force *** (kN) 100
Standard voltage (V), frequency (Hz) 400, 50/60
Compressed air (bar) 6
Weight (kg) 5,600
More Information

* Special tools/formats available on request

** The output depends on tablet size and compressed material

*** Maximum punch load dependant on tablet design

Peripherals

Stearate spraying system
Tablet check unit
Transport trolley and storage holder
Deduster and metal check
Vacuum cleaner
PartGuard
TabTrans
