Kilian

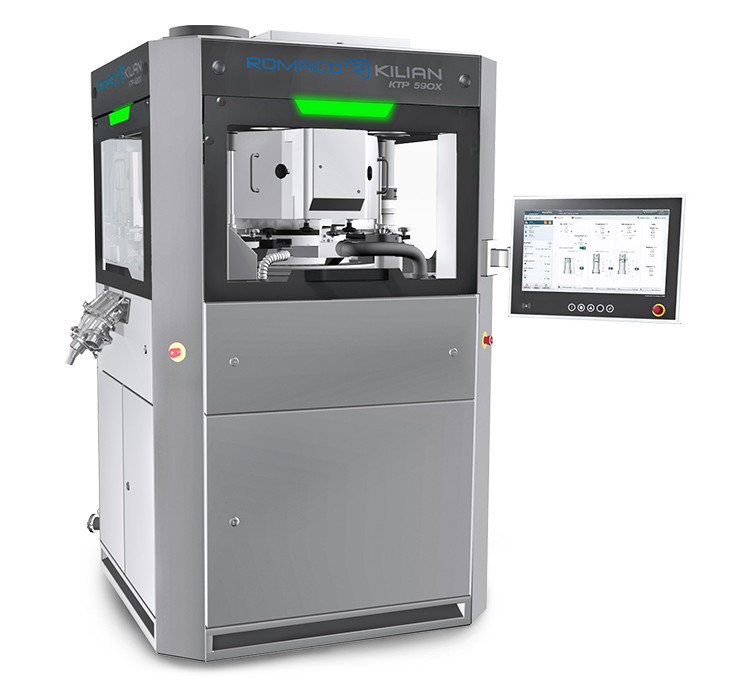

KTP 590X rotary tablet press

Single-sided, high end rotary tablet press for fast change over between mono- and bi-layer tablet mode and for high-speed effervescent tablet production.

33 to 96 press stations for max. 691,200 tablets/hour in mono- and bi-layer configuration

Cool – fast – clean tablet compression

Designed to maintain the process area below 30 °C – ideal for temperature sensitive products
Optional 3rd compression station for best tablet quality and production performance in mono- and bi-layer production – ideal for effervescent tablet production
Minimal product loss
Minimal cleaning effort due to few product contact parts
No cross-contamination due to hermetical separation between compaction and service area

Ideal for:

processing heat sensetive products ►

processing products with capping / lamination tendency ►

processing effervescent products ►

processing vitamine products ►

Learn more

Key Features

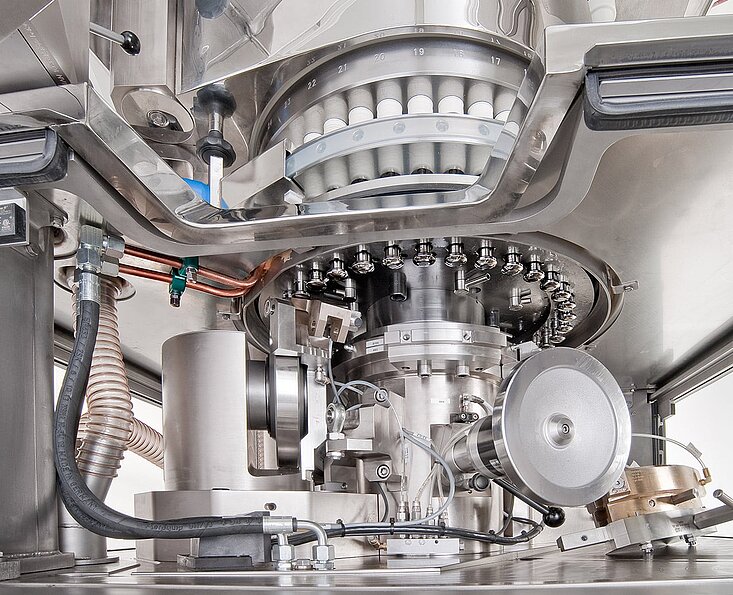

Additional cooling loop to reduce partial heating

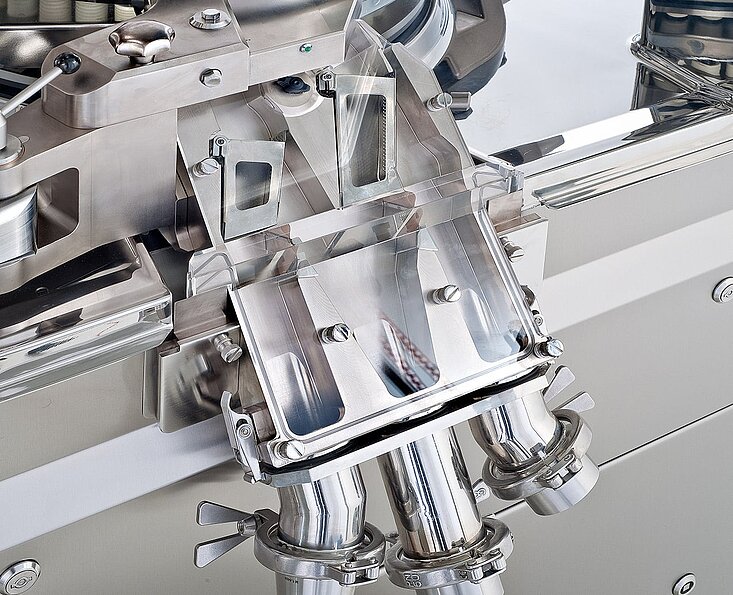

Dust-tight tablet chute mounted on swivel arm

Wide dismantling points

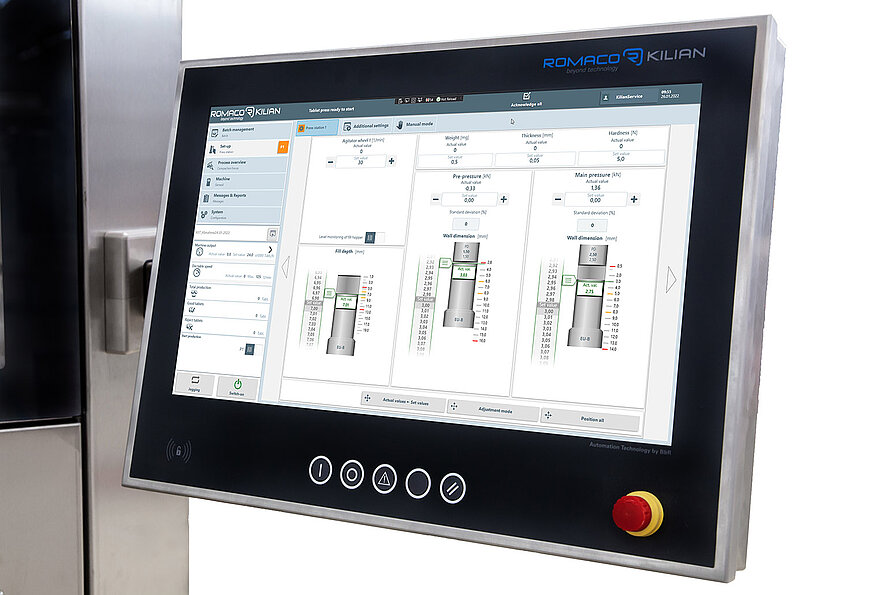

Ergonomic HMI control system

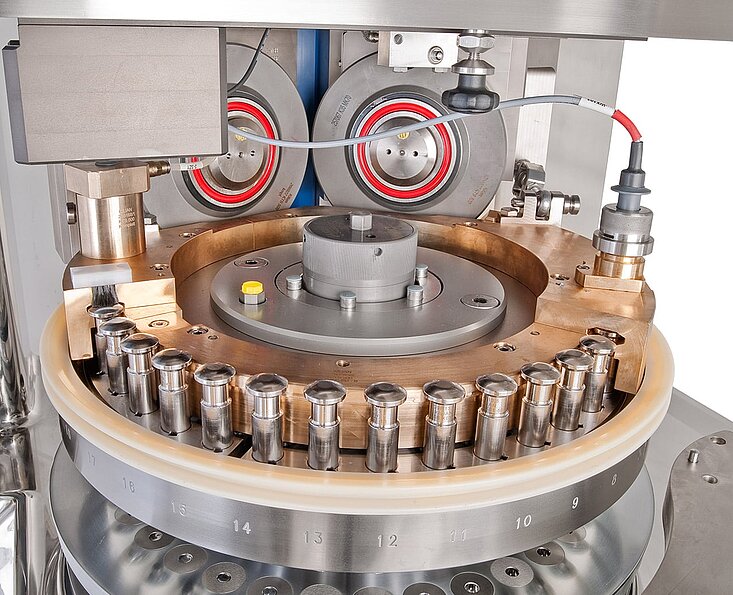

Segment technology and optimized RS12 tooling available

Functionalities

Machine Layout

Additional Views

View in 3D View in Showroom

Technical Data

Machine configurations	Mono-layer; Bi-layer; Alternating Mono- and Bi-layer
Number of press stations	96	71	64	64	54	44	44	44	33
*Tool type (EU and TSM)**	RS12	B	B	B	B	D	D	28/41	35/45
Die type	Segments	BBS	BB	Segments	B	Segments	D	D	52/30
Max. die filling (mm)	18	18	18	20	18	20	20	20	20
Max. tablet diameter (mm)	12	11	13	18	16	24	25	27	34
Max. output Mono-layer (tablets/hour)**	691,200	511,200	460,800	460,800	388,800	290,400	290,400	290,400	118,800
Max. output Bi-layer (tablets/hour)**	691,200	511,200	460,800	460,800	388,800	290,400	290,400	290,400	118,800
Max. pre-compression force* (kN)**	40	80				100
Max. main-compression force* (kN)**	40	80				100
Standard voltage (V), frequency (Hz)	400, 50/60
Compressed air (bar)	6
Weight (kg)	5,000
