KTP 420X C Containment rotary tablet press

The rotary tablet press achieves effective cooling of the process area to below 30°C:

• Special compression rollers, bolts and bearings ensure lowest possible friction
• Efficient cooling of torque drive and V-ring seal for the die table
• Ideal for processing of temperature sensitive products such as Ibuprofen

The rotary tablet press achieves significant time savings through:

• Fast changeable die table
• Tablet chute and fill shoe can be swung out and in quickly and easily without tedious readjustments
• Only a few product contact parts must be removed for cleaning

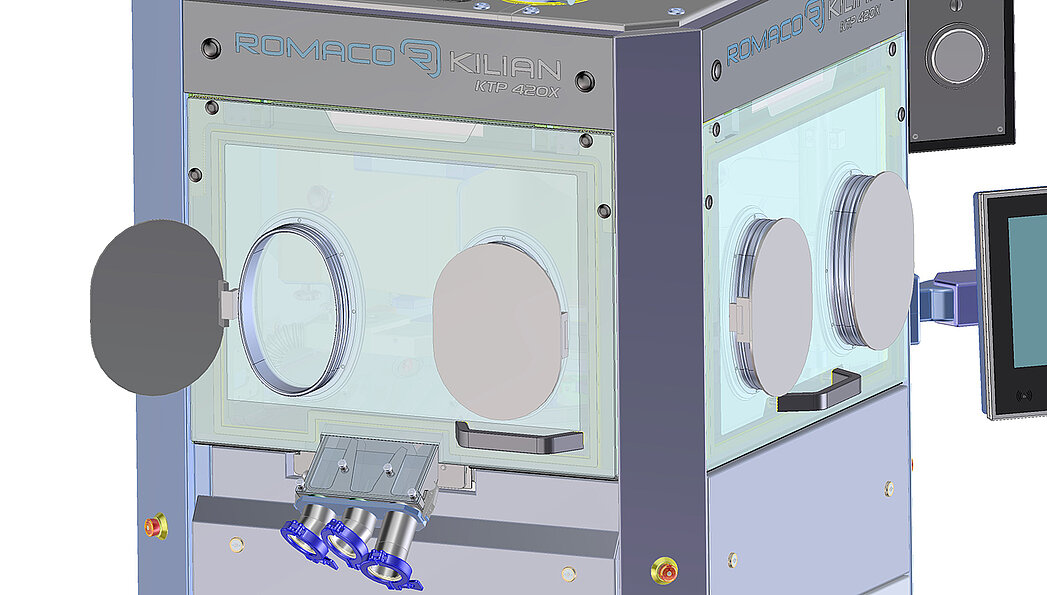

The rotary tablet press follows an hygienic design according to the GMP guidelines and requires reduced cleaning efforts:

• Longer production intervals between cleaning times due to complete separation of processing area, change over area and maintenance area
• Minimized risk of product contamination and fast cleaning procedures due to punch bellows
• Dust-tight tablet chute prevents powder escaping from the machine
• Single piece design and V-ring seal to avoid that product penetrates the lower mechanical compartment

The rotary tablet press has a tablet chute on one side

The rotary tablet press is suitable for tablets with one layer

The rotary tablet press is suitable for fragile tablets made from hygroscopic or sticky powders

Learn more about our segment technology and the optimized RS12 tooling ►
