Kilian

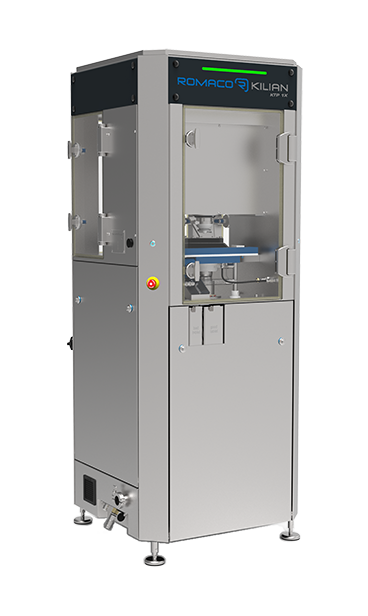

KTP 1X tablet press

Powerful and high-precision all-in-one R&D compaction simulator for tablet development as well as for simulations of the characteristics of any rotary tablet press. Get a view inside your tableting process.


Versatile – fast – clean tablet compression

  • Servo driven single stroke tablet press
  • High accuracy of punch distance measurement
  • Highest accuracy and repeatability of compression force
  • Physical compression simulation of all rotary tablet presses
  • Up to 80 kN compression force

Functionalities

Machine Layout

Additional Views
View in Showroom

Technical Data

Machine configurations  Mono-layer; Multi-layer; Tab-in-tab
Tool type EU/TSM-B or D, specific*
Die type BBS, BB, B, D, oversized*
Maximum tablet diameter (mm) 40
Maximum die filling (mm) 50

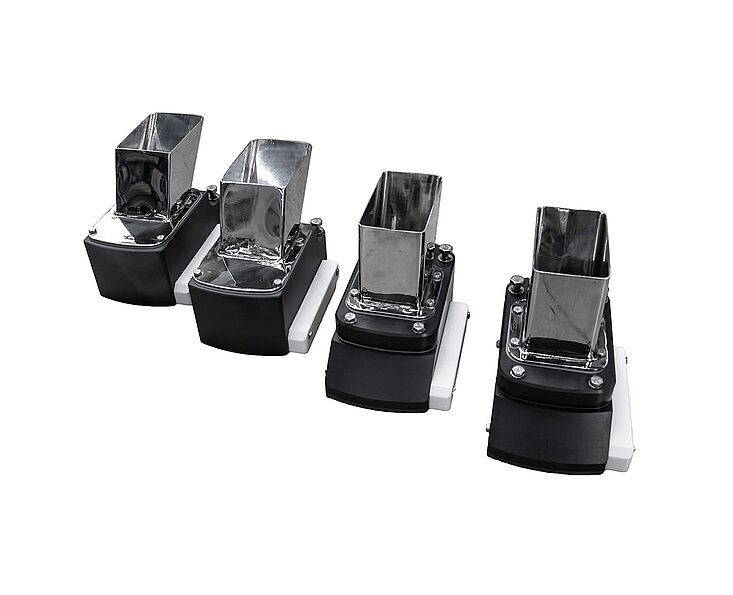

Fill shoes (up to 3) Hand feed, gravity, paddle force feeder, core feeder
Dwell time (ms) < 2 ms can be extended up to > 3 s
Compression mode Force or displacement driven
Penetration depth Adjustable from 1 mm to 10 mm
Maximum tamping-, pre- and main compression (kN) 50, 80*
Punch movement Selectable 1 punch only or upper + lower
Standard voltage (V), frequency (Hz) 400/480 (+/- 10%); 50/60
Weight (kg) 1,300
More Information

* Options specific design of tooling and/or tablet press mechanics and electronics.

** The output depends on tablet size, compressed material, and compression force.
