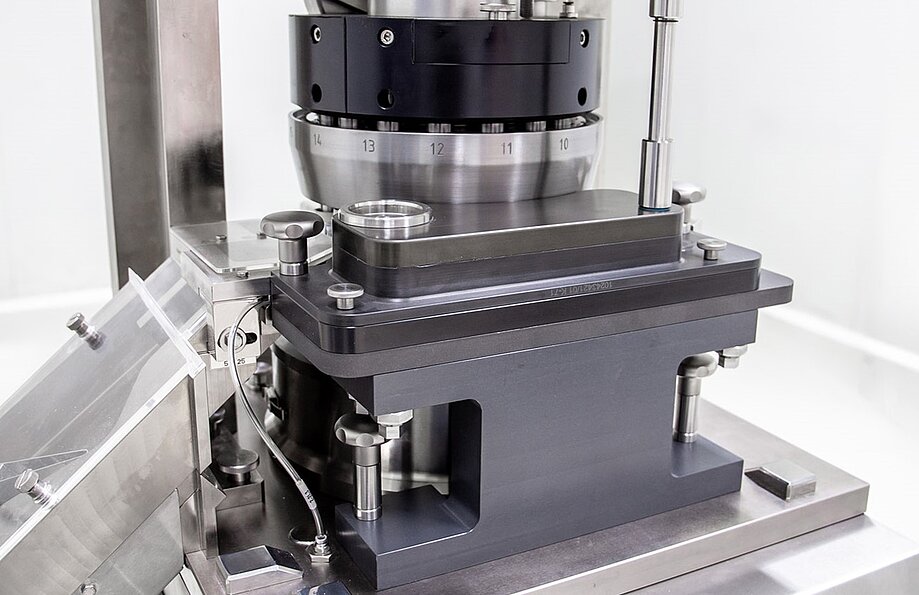

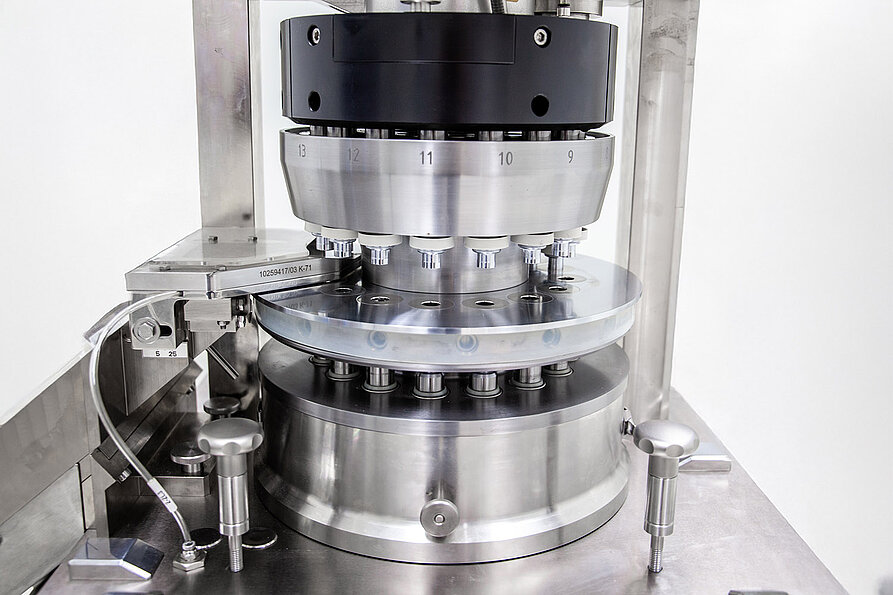

Single-sided rotary tablet press for pharmaceutical mono-layer applications – from R&D through clinical batches to small scale production.
8 to 19 press stations for max. 79,800 tablets/hour
| Machine configuration | Pilot Plant; Lab | ||||||||
| Number of press stations | 19 | 16 | 13 | 8 | 8 (4+4) | ||||
| Tool type (EU and TSM) | B | B | D | D | B+D | ||||
| Die type | BB | B | D | D | B+D | ||||
| Max. die filling (mm) | 15 | 15 | 20 | 20 | 15 (B) / 20 (D) | ||||
| Max. tablet diameter (mm) | 13 | 16 | 24 | 24 | 18 (B) / 25 (D) | ||||
| Max. output* (tablets/hour) | 79,800 | 67,200 | 54,600 | 33,600 | 16,800 | ||||
| Max. pre-compression force** (kN) | 10 | ||||||||
| Max. main-compression force** (kN) | 50 | ||||||||
| Standard voltage (V), Frequency (Hz) | 400, 50/60 | ||||||||
| Compressed air (bar) | 6 | ||||||||
| Weight (kg) | 560 | ||||||||
* The output depends on tablet size and compressed material.
** Maximum punch load dependant on tablet design.
