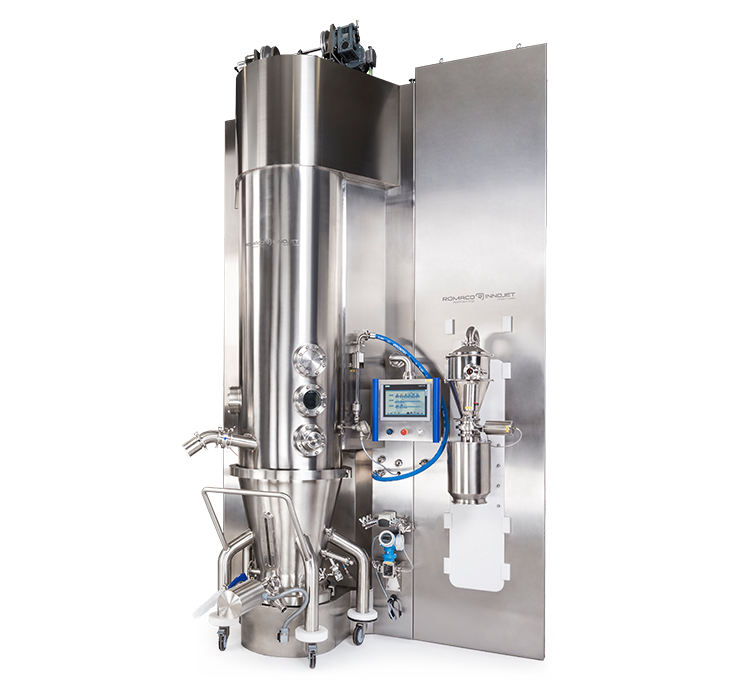

Traditional drying, granulation and coating: the best solution for drying a wide range of products, especially in the pharmaceutical industry.
Performance: 8 L to 1,232 L
Drying of wet granulate (dryer)

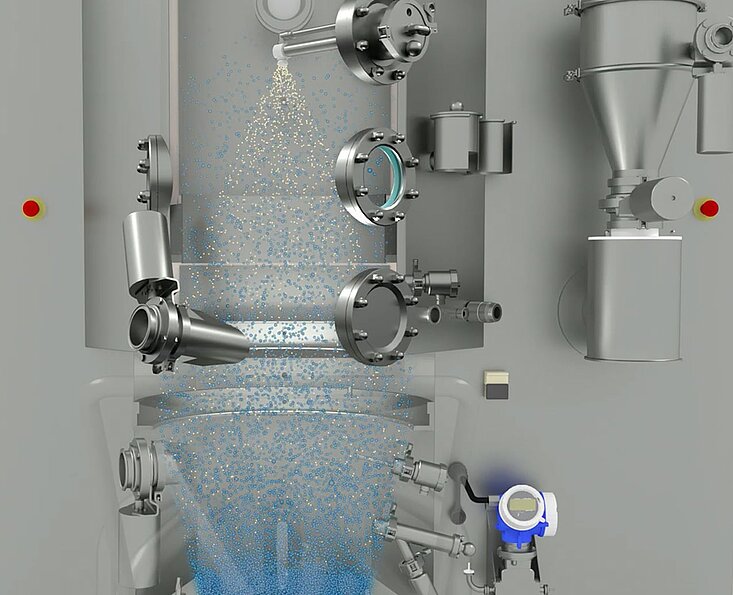

Granulation by top spraying (granulator)

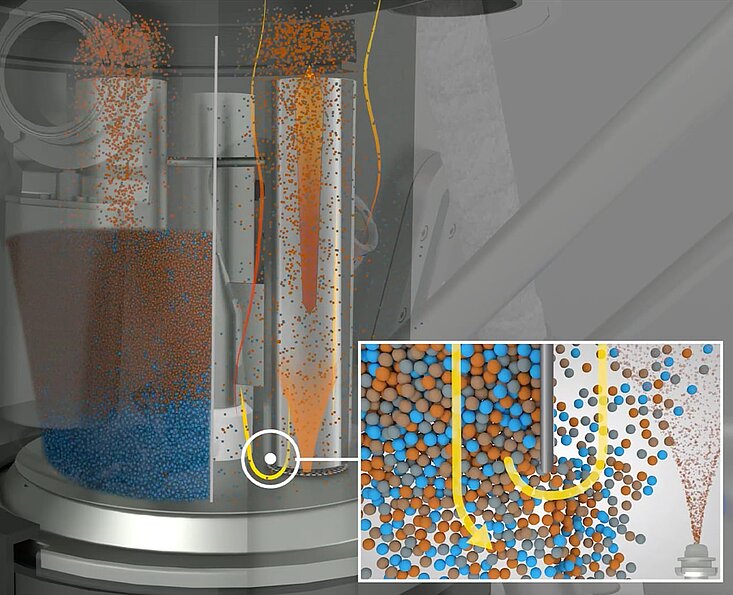

Coating by bottom or tangential spraying (coater)
| Useful Capacity (l) | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|
| Model | min. | max. | A | B | C | D | E |
| IFT 30 | 6 | 24 | 2,000 | 2,650 | 1,650 | 950 | 2,500 |
| IFT 60 | 12 | 48 | 2,075 | 3,250 | 2,100 | 1,150 | 3,000 |
| IFT 100 | 20 | 80 | 2,250 | 3,600 | 2,250 | 1,250 | 3,200 |
| IFT 200 | 40 | 160 | 2,300 | 3,900 | 2,450 | 1,400 | 3,400 |
| IFT 300 | 60 | 240 | 2,450 | 4,350 | 2,550 | 1,500 | 3,500 |
| IFT 400 | 80 | 320 | 2,600 | 4,750 | 2,650 | 1,600 | 3,600 |
| IFT 600 | 120 | 480 | 2,800 | 5,250 | 3,050 | 1,800 | 3,800 |
| IFT 800 | 160 | 640 | 3,000 | 5,800 | 3,250 | 2,000 | 3,900 |
| IFT 1000 | 200 | 800 | 3,100 | 6,357 | 3,650 | 2,107 | 4,000 |
| IFT 1300 | 260 | 1040 | 3,200 | 6,475 | 3,900 | 2,250 | 4,000 |
| IFT 1500 | 300 | 1200 | 3,350 | 6,600 | 4,250 | 2,400 | 4,500 |
3.0 MB (pdf)
* Approximate data / loading levels may change depending on tablets shape and density
